New

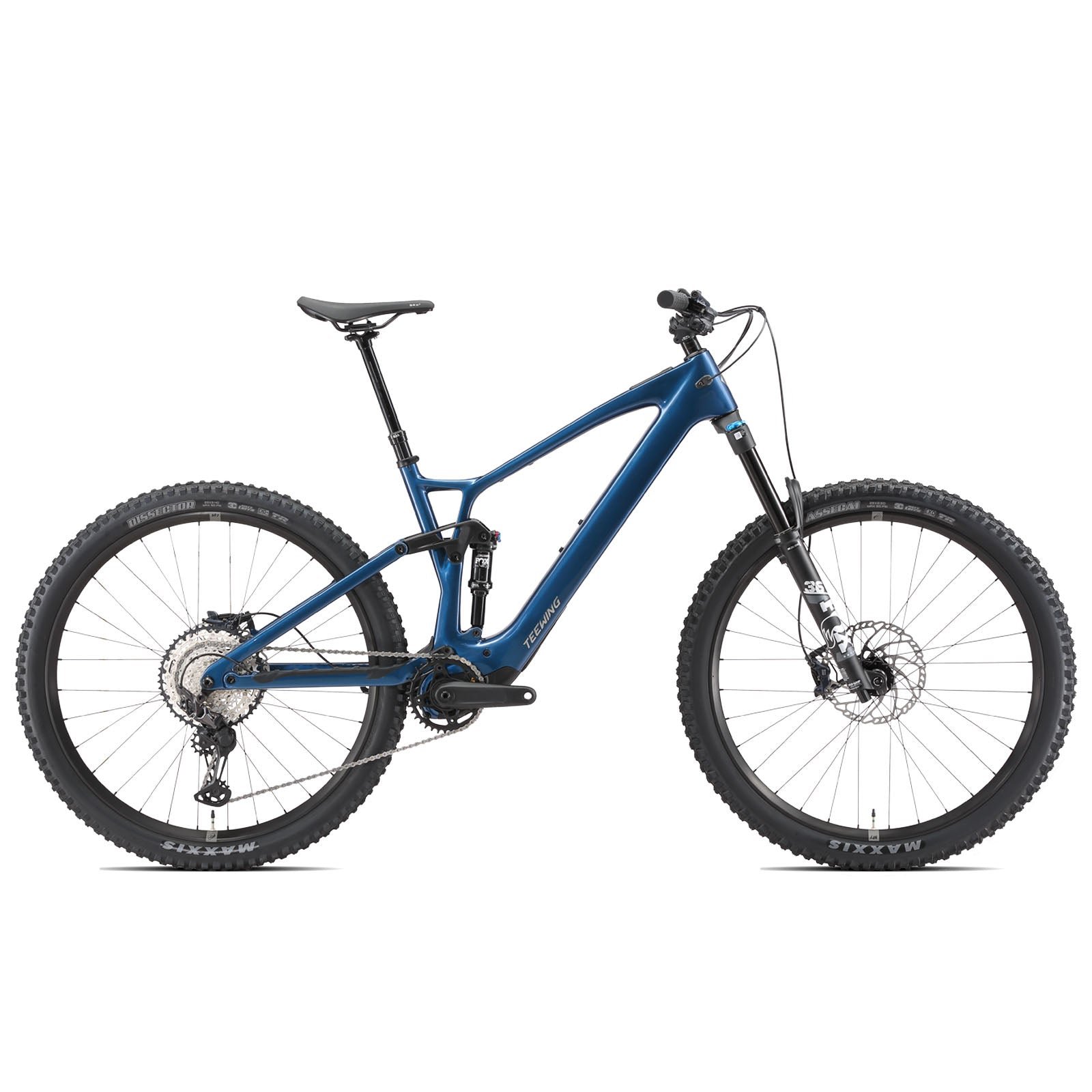

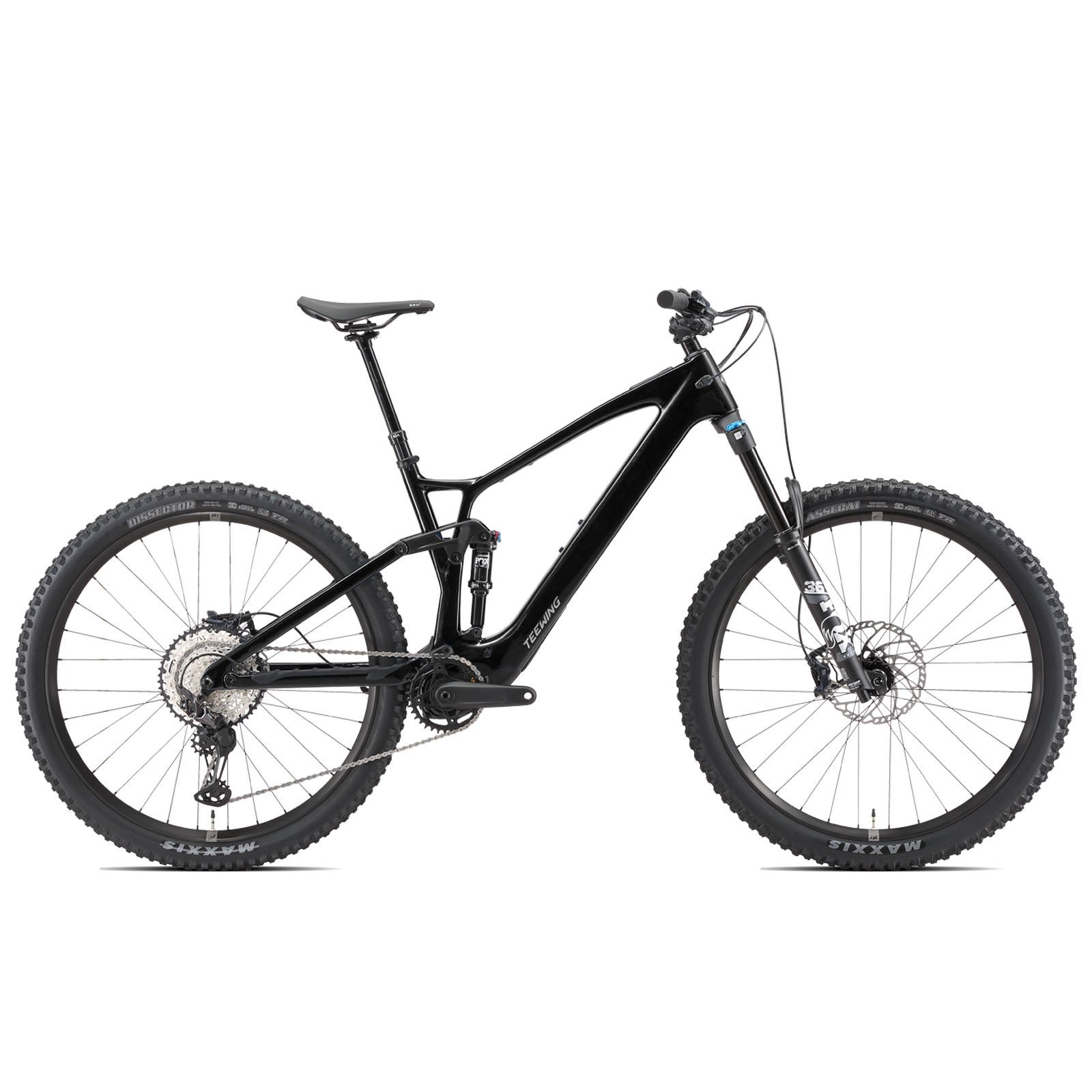

Teewing Turbo Force XT
The Turbo Force platform is built around a simple idea — balance.
5.899,00€
The Turbo Force platform is built around a simple idea — balance.
Balance between power and control. Between climbing efficiency and descending capability. Between responsiveness and stability.
With 150mm of rear travel, a refined four-bar suspension system, and the Avinox M2S drive unit, Turbo Force is designed to perform across a wide range of terrain without compromising ride feel.
| Specifiche tecniche | |
|---|---|
| Frame | Teewing Turbo Force Carbon Frame · 29° rear wheels · Cosmic Black · 150mm rear travel |
| E-bike System | Avinox M2S Drive Unit: 130 N·m (150N·m Boost) · Avinox Integrated Battery: S: 600Wh; M/L/XL: 800Wh · Avinox Fast Charger: 4A/168W · Avinox Screen: 2-inch OLED Control Display · Avinox Wireless Controllers: Right and left sides |
| Rear Shock | FOX 36 Float Rhythm · 185x55mm · Trunnion Mount · EVOL LV Air Spring · 2-Position Adjustment · 0.2ci Volume Spacer · 36x8mm bushing |
| Fork | FOX 36 Float Rhythm (GRIP) · 29”· 160mm Travel · GRIP Damper · Sweep Adjust · 44mm Offset · Boost 15x110mm · Tapered 1.5” Steerer |
| Transmission | Rear Derailleur: Shimano XT M8100, long cage · Shift Levers: Shimano XT M8100, 12 speed · Chain: Shimano SLX CN-M7100, 120LINKS · Chainring: Prowheel FD04 BCD=104, 11/128*36T, BED · Cassette: Shimano SLX M7100, 10-51, 12 speed · Crankset: Teewing SL Crank 155mm |
| Brakes | Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper · Shimano RT66, 6-bolt, 203mm |
| Wheels | Formula -M7 Hybrid · Spokes: SAPIM E-Light J-bend · Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T, MS · Rim: Alloy, 29'', 30mm internal width, 32H, tubeless ready · Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt |
| Tires | Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR · Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR |
| Handlebar | Teewing Enduro AL7075-T6 Handlebar · 8-degree upsweep, 8-degree backsweep · 35mm rise, 780mm wide |
| Grips | VELO Enduro Grips |
| Stem | Teewing Enduro AL6061-T6 · Clamping diameter: 35mm · Length: 40mm |
| Saddle | Selle Royal SRX Plus |
| Seatpost | EXA 31.6 · L: 170mm · M: 150mm · XL: 190mm |
| Accessories | User Manual · Shock Pump · Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25) |
| Weight* | S: 20.8kgs / 45.8 lbs; M/L/XL: 21.8kgs / 48 lbs |
| BRAND | Teewing |
|---|---|
| COLORE | Cosmic Blue, Cosmic Black |
| TAGLIA | XL, S, M, L |
